Tie down Cable
This is for holding the motor while power launching. It reduces the stress on motor mounts and in some cases reduces 1/4 mile time by 1/10th.
1 Go to local Auto store and buy a tailgate cable and a grade 8 bolt. Or find one at local junk yard.
2 Jack truck up and remove front driver side wheel.

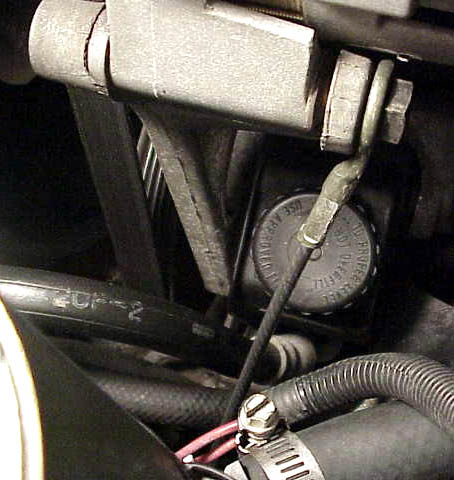

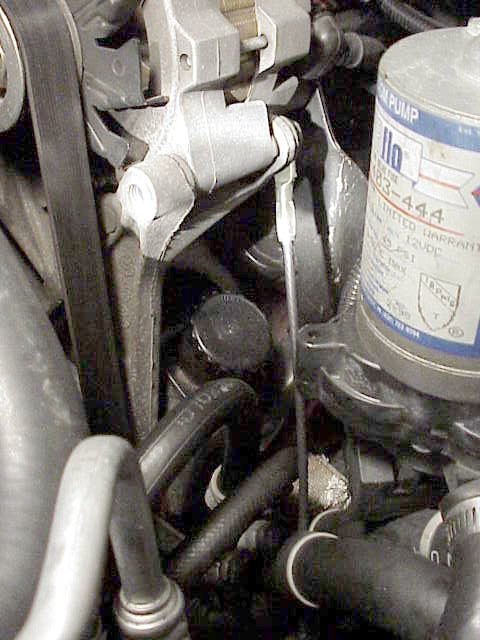

3 Attach cable to bolt behind alt.

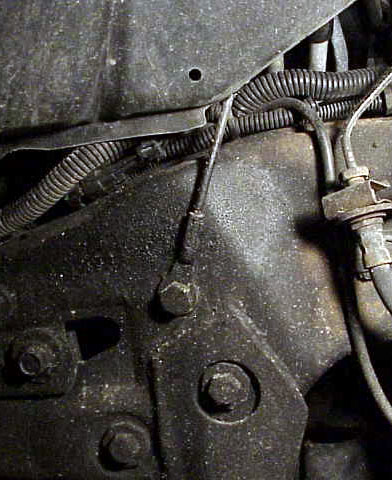

4 Route cable down to frame and drill hole so there is very little slack in line.

5 Move cable out of the way and tap the hole to accept grade 8 bolt.
6 Run the bolt through cable and into frame.

This also serves as another good ground.
